At a glance
Elbe-class replenishment shiplarger figure on 2 of 3

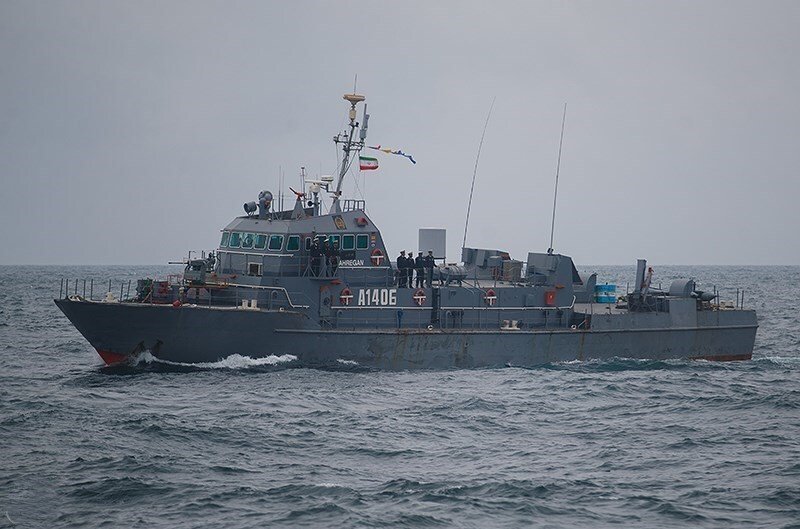

Hendijan-class vessellarger figure on 1 of 3
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Measured figures
Range
Single source2,600 nmi (4,800 km; 3,000 mi)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
Configuration
| Specification | Elbe-class replenishment ship | Hendijan-class vessel |
|---|---|---|
| Power | 1 × Deutz-MWM SBV diesel engines 2,562 kW, Bow thruster[source] | Diesel[source] 2 × Mitsubishi S16MPTK engines, 6,600 horsepower (4.9 MW) 2 × shafts[source] |
| Name | Elbe class[source] | — |
| Builders | Bremer Vulkan[source] | K Damen, Boven-Hardinxveld, Netherlands Marine Industries Organization, Iran[source] |
| Operators | German Navy[source] | Islamic Republic of Iran Navy[source] |
| Succeeded by | Berlin class[source] | — |
| In commission | 1993–present[source] | — |
| Completed | 12[source] | |
| Active | 11[source] | |
| Type | Replenishment ship[source] | Auxiliary ship[source] |
| Capacity | 24 standard 6.2 m containers (maximum) Supplies: 700 m³ fuel 60 m³ aviation (helicopter) fuel 280 m³ fresh water 160 tonnes ammunition 40 tonnes supplies Disposal: 5 tonnes solid waste 180 m³ waste water 32 m³ waste oil[source] | — |
| Armament | 2 × Fliegerfaust 2 surface-to-air missile stands ( MANPADS ) 2 × Rheinmetall Rh202 20 mm autocannon ; being replaced by 2 × MLG-27 27 mm remote controlled autocannons[source] | — |
| Aviation facilities | No hangar , but a heli deck was added for Sea King sized or larger helicopters[source] | — |
| Country of origin | Germany[source] | — |
| Built | — | 1988–1991[source] |
| Lost | — |
