BWarships
At a glance
Daguan-class troopshiplarger figure on 2 of 2
German frigate Sachsen-Anhaltlarger figure on 0 of 2
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Measured figures
Length
Single source196 metres (643 ft)[source]
Length
Single sourceConfiguration
| Specification | Daguan-class troopship | German frigate Sachsen-Anhalt |
|---|---|---|
| Power | — | CODLAG 1 × 20 MW gas turbine 2 × 4.7 MW electric motors 4 × 2.9 MW diesel generators 3 × gearboxes : one for each shaft and one to crossconnect the gas turbine to them 2 × shafts , driving controllable pitch propellers 1 × 1 MW bow thruster[source] |
| Operators | People's Liberation Army Navy[source] | — |
| In service | 2011 - present[source] | — |
| Completed | — | |
| Active | — | |
| Type |
149.52 m (490 ft 7 in)[source]
standard crew: 110
Single source190 (standard crew: 110)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
Troopship / Training ship / "Comprehensive support ship"[source] |
| — |
| Capacity | 2,500 support personnel[source] | Space for two 6.1 m (20 ft 0 in) containers[source] |
|---|
| Aviation facilities | Medium helicopter deck[source] | — |
|---|
| Manufacturer | CSSC Offshore & Marine Engineering Company[source] | — |
|---|
| Aircraft carried | Each ship has a medium helicopter deck on its stern, which can accommodate one Changhe Z-8 heavy transport helicopter.[source]Stern helicopter-deck accommodation; not an embarked air-group assertion | 2 × NH-90 helicopters[source] |
|---|

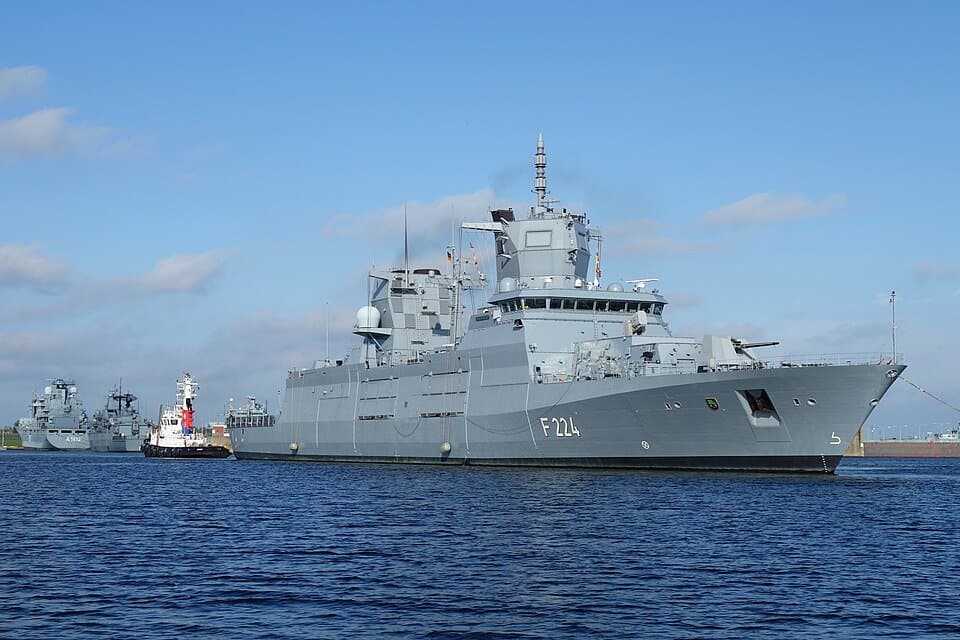

| Name | — | Sachsen-Anhalt[source] |
|---|
| Namesake | — | Sachsen-Anhalt[source] |
|---|
| Port of registry | — | Hamburg , Germany[source] |
|---|
| Builder | — | Lürssen , Wolgast Blohm+Voss , Hamburg[source] |
|---|
| Laid down | — | 4 June 2014[source] |
|---|
| Launched | — | 4 March 2016[source] |
|---|
| Commissioned | — | 17 May 2021[source] |
|---|
| Identification | — | MMSI number : 211922000 Callsign : DRAF Pennant number : F224[source] |
|---|
| Status | — | Active[source] |
|---|
| Class & type | — | Baden-Württemberg -class frigate[source] |
|---|
| Boats & landing craft carried | — | Submarine ROVs 4 × 11 m (36 ft 1 in) RHIB , capable of more than 40 kn (74 km/h)[source] |
|---|
| Sensors & processing systems | — | 1 × Cassidian TRS-4D AESA radar 2(?) × navigation radars IFF diver and swimmer detection sonar (no anti-submarine sonar) Laser warning KORA-18 Combined RADAR and COMMS ESM from GEDIS Link 11 , Link 16 , Link 22 communications systems[source] |
|---|
| Electronic warfare & decoys | — | TKWA/MASS (Multi Ammunition Softkill System) ECM[source] |
|---|
| Armament | — | Naval guns: 1 × 127 mm lightweight Otobreda naval gun with guided VULCANO ammunition for land-attack missions (range: more than 100 km (62 mi)) 2 × 27 mm MLG 27 remote-controlled autocannons 5 × 12.7 mm Hitrole -NT remote-controlled machine gun turrets 2 × 12.7 mm heavy machine guns (manually controlled) Anti-air missiles: 2 × RAM Block II surface-to-air missile launcher/ CIWS , 21 cells each Anti-ship missiles : 8 × RGM-84 Harpoon anti-ship missiles (interim solution until joint sea/land attack missile RBS 15 MK4 becomes available) Non-Lethal: Water cannons[source] |
|---|
| Country of origin | — | Germany[source]German frigate Sachsen-Anhalt · Origin cell explicitly spans the exact named-ship row in the current inventory; not inherited from a separate class specification |
|---|
| Used by | — | German Navy[source]Current operator stated in the article; inventory date not specified |
|---|
