At a glance

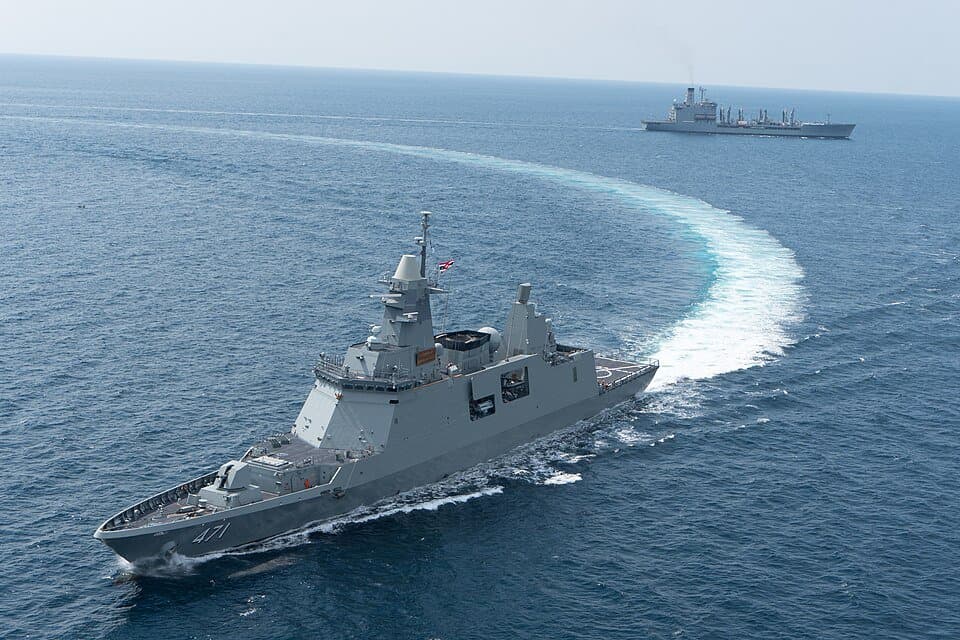

Bhumibol Adulyadej-class frigatelarger figure on 4 of 4
Manoram-class ferrylarger figure on 0 of 4
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Measured figures
Length
Single source124.1 m (407 ft 2 in)[source]
Length
Single sourceConfiguration
| Specification | Bhumibol Adulyadej-class frigate | Manoram-class ferry |
|---|---|---|
| Builders | Daewoo Shipbuilding & Marine Engineering , Busan, South Korea[source] | — |
| Operators | Royal Thai Navy[source] | Indian Navy[source] |
| Preceded by | Naresuan class[source] | — |
| Built | 2013–2017[source] | — |
| In commission | 2019–present[source] |
62.1 m (203 ft 9 in)[source]
at 18 knots (33 km/h; 21 mph)
Single source4,000 nmi (7,400 km; 4,600 mi) at 18 knots (33 km/h; 21 mph)[source]
4 × Ship Service Power Generation (Each of Rated output
Single source4 × Ship Service Power Generation (Each of 830 kW Rated output)[source]
2 × MTU 16V1163 M94 diesel engine 8,000 hp (6,000 kW ) 1 × General Electric LM2500 gas turbine 29,000 hp (22,000 kW)[source]
1,044 kW (1,400 hp) Cummings India Ltd 2 x 150 kW (200 hp) 415 V 50 Hz AC generator[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| — |
| Planned |
|---|
| Completed |
|---|
| Active |
|---|
| Type | Multi-role stealth frigate[source] | Ferry[source] |
|---|
| Sensors & processing systems | 1 × Sea Giraffe 4A AESA long range surveillance radar 1 × Saab SEA GIRAFFE AMB medium range 3D surveillance radar 1 × Wartsila X-band Navigation radar 1 × Wartsila S-band Navigation radar 1 × Tactical Air Navigation System 1 × Surveillance camera 2 × Saab CEROS 200 fire control radar 1 × Saab EOS 500 Electro Optical Fire Control 1 × Atlas ASO DSQS-24 Hull Mounted Sonar 1 × Atlas ELEKTRONIK ACTAS Towed Array Sonar 15 × Saab 9LV Mk4 Multi-Function Consoles 2 × Continuous Wave Illuminators 2 × Target Designation Sight: Bridge Pointer 2 × Identification Friend or Foe 1 × ADS – Broadcast Stealth technology Radar Cross Section Reduction Infrared Reduction Underwater Radiated Noise Reduction Degaussing System NBC Protection System[source] | — |
|---|
| Electronic warfare & decoys | 1 × Harris ES-3601 Radar-ESM 1 × R&F DDF-255 Communication-ESM 6 × Terma C-Guard DL-12T Mk. 137 Decoy Launchers Active-offboard ECM Mk.234 Nulka anti-ship missile decoy system Naval Group CANTO-V anti-torpedo decoy system[source] | — |
|---|
| Armament | 1 × OTO Melara 76 mm/62 Super Rapid main gun 2 × 30mm DS30M Mark 2 Automated Small Calibre Gun 2 × M2 Browning .50 caliber guns 1 × 20 mm Phalanx CIWS 8 × RGM-84L Block II Harpoon anti-ship missile 2 x SEA Torpedo Launching System Mk 32 torpedo tubes 8-cell Mk. 41 VLS containing/or mixture of: 32 × RIM-162 ESSM Block II in quadpacked max loadout 8 × RUM-139C VL ASROC Fitted for but not with SM-2MR Standard Missile[source] | — |
|---|
| Aircraft carried | 1 × S-70B Seahawk or MH-60S Knight hawk[source] | — |
|---|
| Country of origin | 大韓民国[source]Design origin explicitly attributed in article text | India[source] India[source] India[source]Inventory Origin column; table 17, row 3, cell 6; revision 1376895978; retrieved 2026-10-02 |
|---|
| Name | — | Manoram class[source] |
|---|
| Capacity | — | 250 passengers[source] |
|---|
| Source manufacturer statement | — | The Manoram -class ferry are series of watercraft built by Inland Marine Works Pvt Ltd Port Blair , at its Chanch Shipyard, Gujarat for Indian Navy .[source]Only the subject, component or variant named in this passage; unresolved names do not create a manufacturer identity |
|---|
| Source measurement | — | The Manoram -class ferry are series of watercraft built by Inland Marine Works Pvt Ltd Port Blair , at its Chanch Shipyard, Gujarat for Indian Navy . They are fully air-conditioned craft and are fitted with modern navigational aids and can ferry 250 passengers.[source]Manoram-class ferry · Lead; only the objects and conditions stated in this passage |
|---|
