At a glance

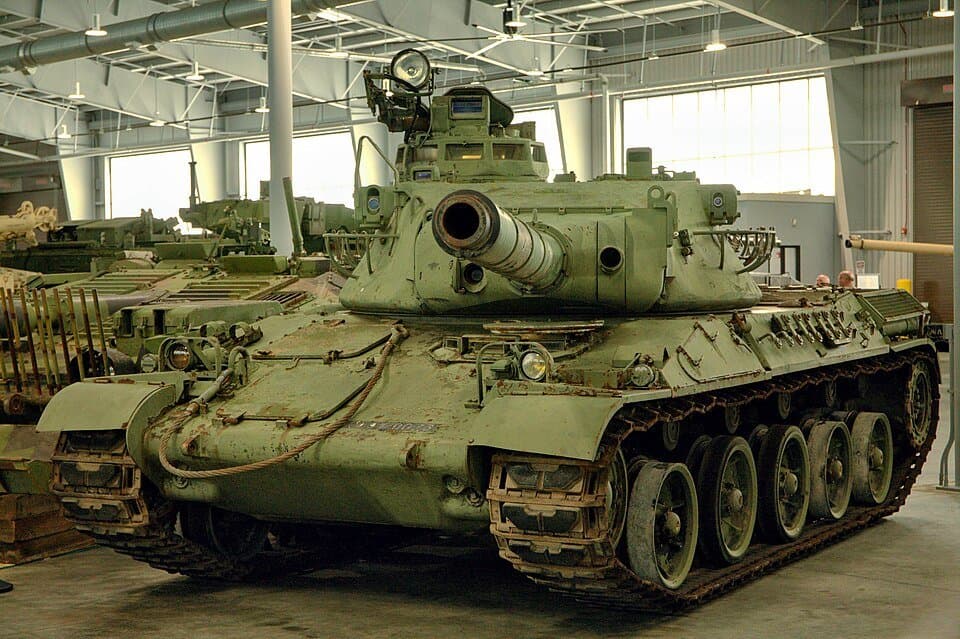

AMX-30larger figure on 1 of 2
K2 Black Pantherlarger figure on 1 of 2
Measured figures
Gun forward
Single source9.48 m (31 ft 1 in) (gun forward)[source]
Chassis
Single sourceConfiguration
| Specification | AMX-30 | K2 Black Panther |
|---|---|---|
| Type | Main battle tank[source] | Main battle tank[source] |
| Place of origin | France[source] | South Korea[source] |
| In service | since 1966[source] | 2014–present[source] |
| Used by | See Operators[source] | See Operators[source] |
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Overall
Single sourceOverall: 10.8 meters (35 ft 5 in) Chassis : 7.5 meters (24 ft 7 in)[source]
Maximum; Maximum speed
Single source65 km/h (40 mph)[source]
Maximum; Cross country Acceleration from
Single sourceMaximum; Paved road
Single sourcePaved road: 70 km/h (43 mph) Cross country: 50 km/h (31 mph) Acceleration from 0–32 km/h (0–20 mph) in 7.47 seconds (MT883 Ka-501) or 8.77 seconds (DV27K)[source]
Hispano-Suiza HS-110 multi-fuel
Single sourceHispano-Suiza HS-110 multi-fuel 680 hp (510 kW)-720 hp (540 kW)[source]
Batch I: STX Engine/ MTU Friedrichshafen MT883 Ka-501 4- short stroke , 12-cylinder water-cooled diesel, dry weight: 2,064 kg Batch II-IV: HD Hyundai Infracore DV27K 4- long stroke , 12-cylinder water-cooled diesel, dry weight: 2,550 kg
Single sourceEngine
Single sourceBatch I: STX Engine/ MTU Friedrichshafen MT883 Ka-501 4- short stroke , 12-cylinder water-cooled diesel, dry weight: 2,064 kg 1,500 hp (1,103 kW) Batch II-IV: HD Hyundai Infracore DV27K 4- long stroke , 12-cylinder water-cooled diesel, dry weight: 2,550 kg 1,500 hp (1,110 kW)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Wars | Iran–Iraq War Persian Gulf War Saudi Arabian–Yemeni border conflict[source] | — |
|---|
| Designed | 1959 ( 1959 )[source] | 1995–2008[source] |
|---|
| Manufacturer | AMX (later GIAT )[source] | Hyundai Rotem[source] |
|---|
| Produced | 1966-1994[source] | 2008–present[source] |
|---|
| No. built | 3,571[source] | Republic of Korea Army : Batch I: 100, Batch II: 106, Batch III: 54, Batch IV: 150 (ordered) Polish Land Forces : Batch I: 180, Batch II: 180 (ordered) Total: 440[source] |
|---|
| Armor | 80 mm (3.1 in) maximum[source] | MIL-12560H armor steel and silicon carbide non-oxide ceramic plate along with ERA add-on armor[source] |
|---|
| Main armament | 105 mm Modèle F1 tank gun[source] | Hyundai WIA CN08 120 mm 55 caliber smoothbore gun (40 rounds, 16 available in the bustle autoloader )[source] |
|---|
| Secondary armament | 1× 20 mm modèle F2 gun 1× 7.62 mm NF1 machine gun[source] | 1× 12.7×99mm NATO K6 heavy machine gun (3,200 rounds) 1× 7.62×51mm NATO coaxial machine gun (12,000 rounds)[source] |
|---|
| Power/weight | 18.9 hp/tonne[source] | 27.3 hp/t (20.35 kW/t)[source] |
|---|
| Transmission | Manual on AMX30B Semi-automatic SESM ENC200 on AMX-30B2[source] | Batch I-III: RENK HSWL 295 TM (5 forward, 5 reverse gears), dry weight: 2,450 kg Batch IV: SNT Dynamics EST15K (6 forward, 3 reverse gears), dry weight: 2,500 kg[source] |
|---|
| Suspension | Torsion bar with shock absorbers[source] | Semi-active in-arm suspension unit (ISU) with dynamic track tension system (DTTS)[source] |
|---|
| Designer | — | Agency for Defense Development Hyundai Rotem Poongsan Corporation Hanwha Systems Samyang Comtech Hyundai WIA Doosan Mottrol[source] |
|---|
| Unit cost | — | ₩ 7.8 billion (production batch 1) US$ 8.5 million (constant 2009 USD)[source] |
|---|
| Fuel capacity | — | 1,296 liters (342 U.S. gal)[source] |
|---|
| Reported operators |
| — |
|---|
