At a glance
Measured figures
AT-802 · Length
Single source35 ft 11 in (10.95 m)[source]

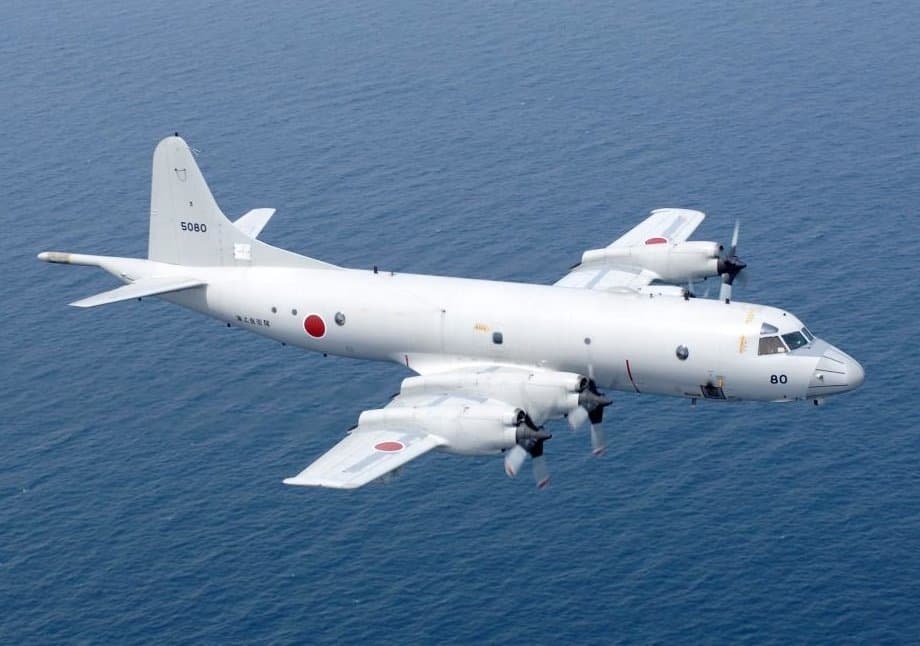

P-3C Orion · Length
Single sourceConfiguration
| Specification | Air Tractor AT-802 | Lockheed P-3 Orion |
|---|---|---|
| Type | Agricultural / Fire-fighting aircraft[source] | Maritime patrol aircraft[source] |
| National origin | United States[source] | United States[source] |
| Manufacturer | Air Tractor[source] | Lockheed Lockheed Martin Kawasaki Aerospace Company[source] |
| Status | Active[source] | Active |
116 ft 10 in (35.61 m)[source]
Cruise; AT-802 · at 8,000 ft (2,440 m)
Single source221 mph (356 km/h, 192 kn) at 8,000 ft (2,440 m)[source]
Cruise; P-3C Orion · at 25,000 ft (7,600 m) and 110,000 lb (50,000 kg)
Single sourceMaximum; P-3C Orion · at 15,000 ft (4,600 m) and 105,000 lb (48,000 kg)
Single source411 kn (473 mph, 761 km/h) at 15,000 ft (4,600 m) and 105,000 lb (48,000 kg)[source]
328 kn (377 mph, 607 km/h) at 25,000 ft (7,600 m) and 110,000 lb (50,000 kg)[source]
P-3C Orion · (3 hours on station at 1,500 ft (460 m))
Single source1,345 nmi (1,548 mi, 2,491 km) (3 hours on station at 1,500 ft (460 m))[source]
AT-802 · 1 × Pratt & Whitney PT6A -67AG turboprop , 1,350 shp (
Single source1 × Pratt & Whitney PT6A -67AG turboprop , 1,350 shp (1,010 kW)[source]
P-3C Orion · 4 × Allison T56-A-14 turboprop engines, 4,910 shp ( ) each (equivalent
Single source4 × Allison T56-A-14 turboprop engines, 4,910 shp (3,660 kW) each (equivalent)[source]
P-3C Orion · at 15,000 ft (4,600 m) on two engines
Single source17 hours 12 minutes at 15,000 ft (4,600 m) on two engines[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Manufactured | 1990–present[source] | 1961–1990[source] |
|---|
| First flight | 1990[source] | November 1959[source] |
|---|
| Variant | L3Harris OA-1K Skyraider II[source] | — |
|---|
| Capacity | 820 US gal (683 imp gal; 3,104 L)[source] | — |
|---|
| Aspect ratio | 8.8:1[source] | 7.5[source] |
|---|
| Airfoil | NACA 4415[source] | root: NACA 0014 modified ; tip: NACA 0012 modified[source] |
|---|
| Stall speed | 91 mph (146 km/h, 79 kn) (power off, flaps down)[source] | 133 kn (153 mph, 246 km/h) flaps up[source] |
|---|
| Primary users | — | United States Navy Republic of China Navy Japan Maritime Self-Defense Force Republic of Korea Navy[source] |
|---|
| Number built | — | Lockheed – 650, Kawasaki – 107, Total – 757[source] |
|---|
| Introduction date | — | August 1962[source] |
|---|
| Developed from | — | Lockheed L-188 Electra[source] |
|---|
| Variants | — | Lockheed AP-3C Orion Lockheed CP-140 Aurora Lockheed EP-3 Lockheed WP-3D Orion[source] |
|---|
| Developed into | — | Lockheed P-7[source] |
|---|
| Fuel capacity | — | 9,200 US gal (7,700 imp gal; 35,000 L) usable fuel in 5 wing and fuselage tanks; (62,500 lb (28,350 kg) maximum fuel weight); 111 US gal (92 imp gal; 420 L) usable oil in 4 tanks[source] |
|---|
| Hardpoints | — | 10 wing stations in total (3x on each wing and 2x on each wing root) and eight internal bomb bay stations with a capacity of 20,000 lb (9,100 kg) , with provisions to carry combinations of: Rockets: None Missiles: Air-to-surface missile :4× AGM-65 Maverick , 6× AGM-84 Harpoon , 4× AGM-84 Standoff Land Attack Missile (SLAM-ER) Bombs: Depth charges , Mk 101 Lulu nuclear depth bomb ,10× Mk 20 Rockeye , MK80 Series (18×MK82, MK83, MK84) general-purpose bombs, B57 nuclear bomb (US service only, retired 1993) Other: Mk 44 (mostly retired from service), 8× Mk 46 , 6× Mk 50 , 7× Mk 54 or MU90 Impact torpedoes Mk 25, Mk 39, Mk 55, 7× Mk 56, Mk 60 CAPTOR or 6× Mk 65 or 18× Mk 62 or 11×Mk 63 Quickstrike naval mines Active and passive Sonobuoys[source] |
|---|
| Zero-fuel weight | — | 77,200 lb (35,017 kg)[source] |
|---|
| Maximum landing weight | — | (MLW) 103,880 lb (47,119 kg)[source] |
|---|
| Propellers | — | 4-bladed Hamilton Standard 54H60-77, 13 ft 6 in (4.11 m) diameter constant-speed fully-feathering reversible propellers[source] |
|---|
| Patrol speed | — | 206 kn (237 mph; 382 km/h) at 1,500 ft (460 m) and 110,000 lb (50,000 kg)[source] |
|---|
| Time to altitude | — | 25,000 ft (7,600 m) in 30 minutes[source] |
|---|
| Wing loading | — | 103.8 lb/sq ft (507 kg/m 2 )[source] |
|---|
| Power/mass | — | 0.1455 hp/lb (0.2392 kW/kg) (equivalent)[source] |
|---|
| Take-off run | — | 4,240 ft (1,290 m)[source] |
|---|
| Take-off distance to 50 ft (15 m) | — | 5,490 ft (1,670 m)[source] |
|---|
| Landing distance from 50 ft (15 m) | — | 2,770 ft (840 m)[source] |
|---|
| Rockets | — | None[source] |
|---|
| Missiles | — | Air-to-surface missile :4× AGM-65 Maverick , 6× AGM-84 Harpoon , 4× AGM-84 Standoff Land Attack Missile (SLAM-ER)[source] |
|---|
| Bombs | — | Depth charges , Mk 101 Lulu nuclear depth bomb ,10× Mk 20 Rockeye , MK80 Series (18×MK82, MK83, MK84) general-purpose bombs, B57 nuclear bomb (US service only, retired 1993)[source] |
|---|
| Other | — | Mk 44 (mostly retired from service), 8× Mk 46 , 6× Mk 50 , 7× Mk 54 or MU90 Impact torpedoes Mk 25, Mk 39, Mk 55, 7× Mk 56, Mk 60 CAPTOR or 6× Mk 65 or 18× Mk 62 or 11×Mk 63 Quickstrike naval mines Active and passive Sonobuoys[source] |
|---|
