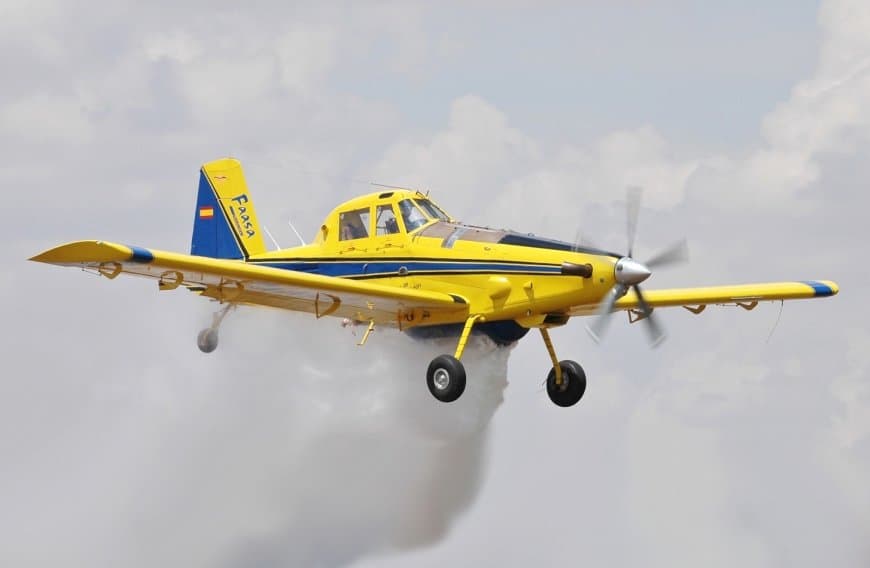

Credit
Daniel VA · CC BY-SA 4.0 · Resized · CC BY-SA 4.0 · Source ↗ · Modified
FORCETALLY
Loading the evidence…
Preparing your view.
Preparing your view.
At a glance
Measured figures
AT-802 · Length
Single source35 ft 11 in (10.95 m)[source]
337D · Length
Single sourceConfiguration
| Specification | Air Tractor AT-802 | Cessna Skymaster |
|---|---|---|
| Type | Agricultural / Fire-fighting aircraft[source] | Personal use and air taxi aircraft[source] |
| National origin | United States[source] | United States[source] |
| Manufacturer | Air Tractor[source] | Cessna Reims Aviation[source] |
| Status | Active[source] |
29 ft 9 in (9.07 m)[source]
Cruise; AT-802 · at 8,000 ft (2,440 m)
Single source221 mph (356 km/h, 192 kn) at 8,000 ft (2,440 m)[source]
AT-802 · 1 × Pratt & Whitney PT6A -67AG turboprop , 1,350 shp (
Single source1 × Pratt & Whitney PT6A -67AG turboprop , 1,350 shp (1,010 kW)[source]
337D · 2 × Continental IO-360-C air-cooled flat-six piston engine each
Single source2 × Continental IO-360-C air-cooled flat-six piston engine, 210 hp (160 kW) each[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| — |
| Manufactured | 1990–present[source] | 1963–1982[source] |
|---|
| First flight | 1990[source] | February 28, 1961[source] |
|---|
| Variant | L3Harris OA-1K Skyraider II[source] | — |
|---|
| Capacity | 820 US gal (683 imp gal; 3,104 L)[source] | 5 passengers[source] |
|---|
| Aspect ratio | 8.8:1[source] | 7.18:1[source] |
|---|
| Airfoil | NACA 4415[source] | NACA 2412 at root, NACA 2409 at tip[source] |
|---|
| Stall speed | 91 mph (146 km/h, 79 kn) (power off, flaps down)[source] | 69 mph (111 km/h, 60 kn) (flaps and undercarriage down)[source] |
|---|
| Number built | — | 2,993[source] |
|---|
| Introduction date | — | 1962[source] |
|---|
| Variants | — | Cessna O-2 Skymaster Conroy Stolifter Spectrum SA-550[source] |
|---|
| Fuel capacity | — | 92 US gal (77 imp gal; 350 L) normal, 128 US gal (107 imp gal; 480 L) with auxiliary tanks[source] |
|---|
| Propellers | — | 2-bladed McCauley fully-feathering, constant-speed propeller, 6 ft 4 in (1.93 m) diameter[source] |
|---|
| Takeoff distance to 50 ft (15m) | — | 1,545 ft (471 m)[source] |
|---|
| Landing distance from 50 ft (15m) | — | 1,650 ft (500 m)[source] |
|---|
