At a glance

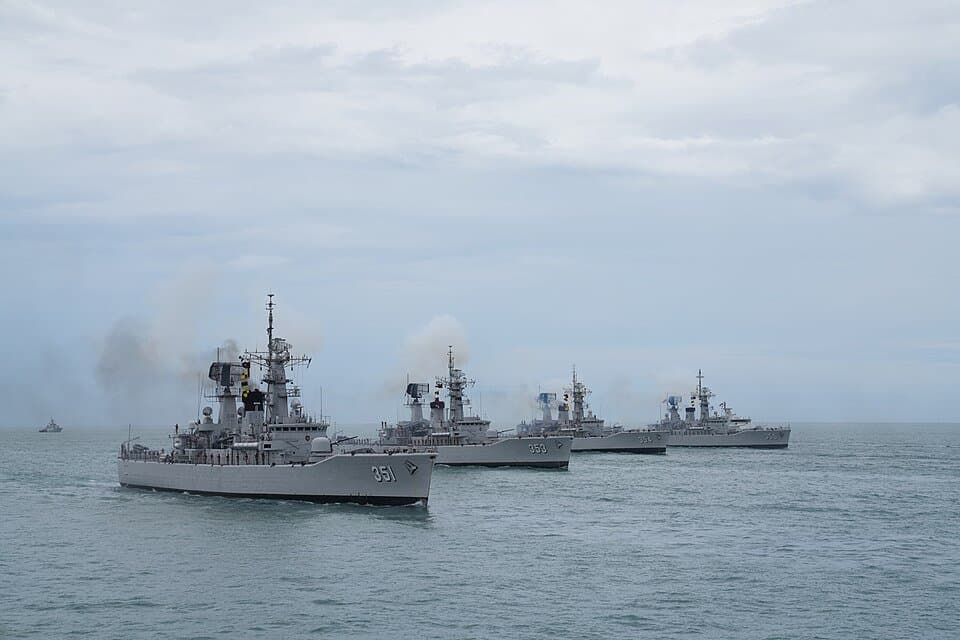

Ahmad Yani-class frigatelarger figure on 4 of 4
Measured figures
Length
Single source113.4 m (372 ft 1 in)[source]
Length
Single sourceConfiguration
| Specification | Ahmad Yani-class frigate | Manoram-class ferry |
|---|---|---|
| Power | As built 2 x geared steam turbines 22,370 kW (30,000 shp ) 2 x shafts Rebuild Caterpillar diesels (5 ships) SEMT-Pielstick diesels (1 ship)[source] | 1,044 kW (1,400 hp) Cummings India Ltd 2 x 150 kW (200 hp) 415 V 50 Hz AC generator[source] |
| Name | Ahmad Yani class[source] | Manoram class[source] |
| Builders | Nederlandsche Dok en Scheepsbouw Maatschappij Damen Schelde Naval Shipbuilding[source] | — |
| Operators | Indonesian Navy[source] | Indian Navy |
Manoram-class ferrylarger figure on 0 of 4
Counts only measures both sources give with the same scope. A larger figure is not a better system.
62.1 m (203 ft 9 in)[source]
at 12 kn (22 km/h; 14 mph)
Single source4,500 nmi (8,300 km; 5,200 mi) at 12 kn (22 km/h; 14 mph)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Preceded by | Martha Khristina Tiyahahu class[source] | — |
|---|
| Succeeded by | Martadinata class[source] | — |
|---|
| Subclasses | Van Speijk class[source] | — |
|---|
| Built | 1963–1968[source] | — |
|---|
| In service | 1986–present (Indonesian Navy)[source] | — |
|---|
| Completed |
|---|
| Active |
|---|
| Retired | — |
|---|
| Type | Frigate[source] | Ferry[source] |
|---|
| Sensors & processing systems | Radar : LW-03, DA-02, M45, M44 Sonar : Types 170B, 162 Combat system: SEWACO V[source] | — |
|---|
| Armament | 1× OTO Melara 76 mm gun 2× twin Simbad Launcher for Mistral SAMs (Originally equipped with Seacat ) 4× SS-N-26 SSM (KRI Oswald Siahaan ) 4× C-802 SSM (on five ships) (Originally equipped with Harpoon Block 1D ) 2 × 3 – Mk 32 anti-submarine torpedo tubes[source] | — |
|---|
| Aircraft carried | 1x NBO-105C[source] | — |
|---|
| Aviation facilities | Hangar[source] | — |
|---|
| Country of origin | Netherlands[source]Ahmad Yani-class frigate · origin explicitly stated in the linked current national-inventory row; no inference from operator or shipyard | India[source] India[source] India[source]Inventory Origin column; table 17, row 3, cell 6; revision 1376895978; retrieved 2026-10-02 |
|---|
| Planned | — |
|---|
| Capacity | — | 250 passengers[source] |
|---|
| Source manufacturer statement | — | The Manoram -class ferry are series of watercraft built by Inland Marine Works Pvt Ltd Port Blair , at its Chanch Shipyard, Gujarat for Indian Navy .[source]Only the subject, component or variant named in this passage; unresolved names do not create a manufacturer identity |
|---|
| Source measurement | — | The Manoram -class ferry are series of watercraft built by Inland Marine Works Pvt Ltd Port Blair , at its Chanch Shipyard, Gujarat for Indian Navy . They are fully air-conditioned craft and are fitted with modern navigational aids and can ferry 250 passengers.[source]Manoram-class ferry · Lead; only the objects and conditions stated in this passage |
|---|
