2S35 Koalitsiya-SV vs M119 howitzer: Specs Compared

FORCETALLY

Loading the evidence…

Preparing your view.

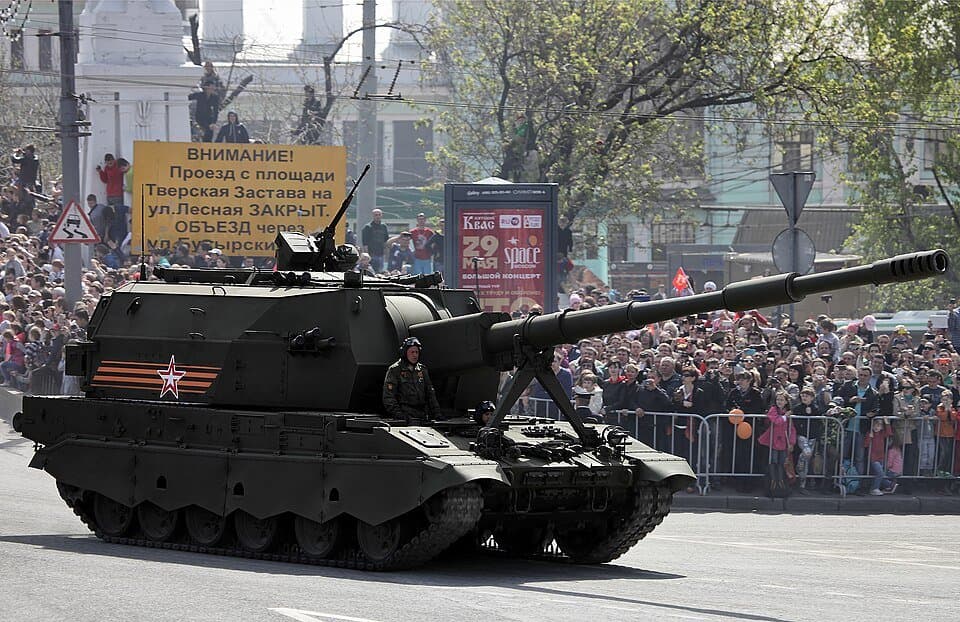

2S35 Koalitsiya-SV — licensed reference photograph

AArtillery

2S35 Koalitsiya-SV

Self-propelled gun

Credit

Vitaly V. Kuzmin · CC BY-SA 4.0 · Resized · CC BY-SA 4.0 · Source ↗ · Modified

M119 howitzer and crew during live-fire qualification — licensed reference photograph

BArtillery

M119 howitzer

Towed field gun

Credit

Gertrud Zach · Public domain · Resized · Public domain · Source ↗ · Modified

First system

Second system

Measured figures

Head to head

10 of 31 rows sourced on both sides

—

1.78m

Width

All recorded figures & sources

1.78 m

Width

Single source

5 ft 10 in (1.78 m)^[source]

—

2.21mCombat

Height

Configuration

Details

2S35 Koalitsiya-SV and M119 howitzer configuration
Specification	2S35 Koalitsiya-SV	M119 howitzer
Type	Self-propelled gun^[source]	Towed field gun^[source]
Place of origin	Russia^[source]	United States^[source]
In service	2023–present^[source]	—
Used by	Russian Ground Forces^[source]	See operators^[source]

Designer	Burevestnik Central Scientific Research Institute^[source]	—

Produced	2015–present^[source]	1989–2013^[source]

No. built	12+ (serial production ongoing)^[source]	—

Main armament	152.4 mm or 155 mm gun^[source]	—

Secondary armament	12.7 × 108 mm remote controlled Kord machine gun 2 bundles of 902B Tucha smoke grenade launchers^[source]	—

Manufacturer	Uraltransmash^[source]	Joint Manufacturing Technology Center of Rock Island Arsenal^[source]

Variants	—	M119, M119A1, M119A2, M119A3^[source]

Shell	—	Semi-fixed 105 x 372 mm R^[source]

Elevation	—	-5.625° (−100 mils) to +69.975° (+1,244 mils)^[source]

Traverse	—	5.625° (100 mils) left or right^[source]

Sights	—	3 × M90A2 telescope, M137A1 panoramic telescope^[source]

Role	—	lightweight 105 mm howitzer ,^[source]

Source measurement	—	The M119 howitzer is a lightweight 105 mm howitzer , used by the United States Army . It is the American licensed version of the British L119 light gun . The M119 is typically towed by the M1097 or M1152 High Mobility Multi-Purpose Wheeled Vehicle (HMMWV) , and can be easily airlifted by helicopter , or airdropped by parachute .^[source]M119 howitzer · Lead; only the objects and conditions stated in this passage The howitzer was designed and produced by the British Royal Ordnance Factories as the L118 light gun . In the L118 configuration, the 105 mm ammunition is cased separate loading ammunition. The L118 entered service with the British Army in 1976 and is used by parachute and commando field artillery regiments. It saw combat during the Falklands War , where the 30 guns in action fired up to 400 rounds per gun per day, mostly at "charge super"—i.e., the most powerful propellant charge available.^[source]M119 howitzer · Development; only the objects and conditions stated in this passage The L119 is the L118 reconfigured to fire NATO -standard 105 mm semi-fixed ammunition .^[source]M119 howitzer · Development; only the objects and conditions stated in this passage The redesigned system operates the same, but modifies and simplifies some components, including a new buffer and recuperator with a majority of the components removed, and adds the Suspension Lockout System (SLOS) that fixes recoil length at 25 in (64 cm), which removes variable-recoil hardware, reduces stress on the carriage, and lowers buffer rod forces; the new system reduces cost, the system consists of 124 parts and the redesign will reduce that number by 40 percent to 75 parts and reusing 47 parts will consist of 65 percent for the current system, therefore only needing to manufacturing 28 new parts with overall weight savings of 45 lb (20 kg).^[source]M119 howitzer · Development; only the objects and conditions stated in this passage with M67 propelling charges: M1 (HE) – High Explosive projectile, range: 11.5 km (7.1 mi), 2.1 kg of explosive filling M60 (WP) – White Phosphorus smoke generating projectile, range: 15.1 km (9.4 mi) (current variant: M60A2) M84 (HC) – Hexachloroethane smoke generating projectile, range: 11.5 km (7.1 mi) (current variant: 105 mm M84A1) M314 (VL) – Visible Light illuminating projectile, range: 19.5 km (12.1 mi) (current variant: M314A3) M444 (APICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 11.5 km (7.1 mi) M916 (DPICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 11.5 km (7.1 mi) M927 (HERA) – High Explosive Rocket Assisted projectile, range: 16.5 km (10.3 mi) M1064 (IR) – Infrared illuminating projectile, range: 19.5 km (12.1 mi) M1130 (HE PFF BB) – High Explosive Pre-Formed Fragments Base Bleed projectile – range: 13.0 km (8.1 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage with M176 propelling charges: M548 (HERA) – High Explosive Rocket Assisted projectile, range: 15.1 km (9.4 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage with M200 propelling charge: M760 (HE) – High Explosive projectile, range: 14.0 km (8.7 mi) M915 (DPICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 14.1 km (8.8 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage with M219 propelling charge: M913 (HERA) – High Explosive Rocket Assisted projectile, range: 19.5 km (12.1 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage with M350 propelling charges: M1130A1 (HE PFF BB) – High Explosive Pre-Formed Fragments Base Bleed projectile, range 17.0 km (10.6 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage

Source measurement

—

The M119 howitzer is a lightweight 105 mm howitzer , used by the United States Army . It is the American licensed version of the British L119 light gun . The M119 is typically towed by the M1097 or M1152 High Mobility Multi-Purpose Wheeled Vehicle (HMMWV) , and can be easily airlifted by helicopter , or airdropped by parachute .^[source]M119 howitzer · Lead; only the objects and conditions stated in this passage

The howitzer was designed and produced by the British Royal Ordnance Factories as the L118 light gun . In the L118 configuration, the 105 mm ammunition is cased separate loading ammunition. The L118 entered service with the British Army in 1976 and is used by parachute and commando field artillery regiments. It saw combat during the Falklands War , where the 30 guns in action fired up to 400 rounds per gun per day, mostly at "charge super"—i.e., the most powerful propellant charge available.^[source]M119 howitzer · Development; only the objects and conditions stated in this passage

The L119 is the L118 reconfigured to fire NATO -standard 105 mm semi-fixed ammunition .^[source]M119 howitzer · Development; only the objects and conditions stated in this passage

The redesigned system operates the same, but modifies and simplifies some components, including a new buffer and recuperator with a majority of the components removed, and adds the Suspension Lockout System (SLOS) that fixes recoil length at 25 in (64 cm), which removes variable-recoil hardware, reduces stress on the carriage, and lowers buffer rod forces; the new system reduces cost, the system consists of 124 parts and the redesign will reduce that number by 40 percent to 75 parts and reusing 47 parts will consist of 65 percent for the current system, therefore only needing to manufacturing 28 new parts with overall weight savings of 45 lb (20 kg).^[source]M119 howitzer · Development; only the objects and conditions stated in this passage

with M67 propelling charges: M1 (HE) – High Explosive projectile, range: 11.5 km (7.1 mi), 2.1 kg of explosive filling M60 (WP) – White Phosphorus smoke generating projectile, range: 15.1 km (9.4 mi) (current variant: M60A2) M84 (HC) – Hexachloroethane smoke generating projectile, range: 11.5 km (7.1 mi) (current variant: 105 mm M84A1) M314 (VL) – Visible Light illuminating projectile, range: 19.5 km (12.1 mi) (current variant: M314A3) M444 (APICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 11.5 km (7.1 mi) M916 (DPICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 11.5 km (7.1 mi) M927 (HERA) – High Explosive Rocket Assisted projectile, range: 16.5 km (10.3 mi) M1064 (IR) – Infrared illuminating projectile, range: 19.5 km (12.1 mi) M1130 (HE PFF BB) – High Explosive Pre-Formed Fragments Base Bleed projectile – range: 13.0 km (8.1 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage

with M176 propelling charges: M548 (HERA) – High Explosive Rocket Assisted projectile, range: 15.1 km (9.4 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage

with M200 propelling charge: M760 (HE) – High Explosive projectile, range: 14.0 km (8.7 mi) M915 (DPICM) – Dual-Purpose Improved Conventional Munition (withdrawn from service), range: 14.1 km (8.8 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage

with M219 propelling charge: M913 (HERA) – High Explosive Rocket Assisted projectile, range: 19.5 km (12.1 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage

with M350 propelling charges: M1130A1 (HE PFF BB) – High Explosive Pre-Formed Fragments Base Bleed projectile, range 17.0 km (10.6 mi)^[source]M119 howitzer · Ammunition; only the objects and conditions stated in this passage
